Kinatic Facade

Technical Specification

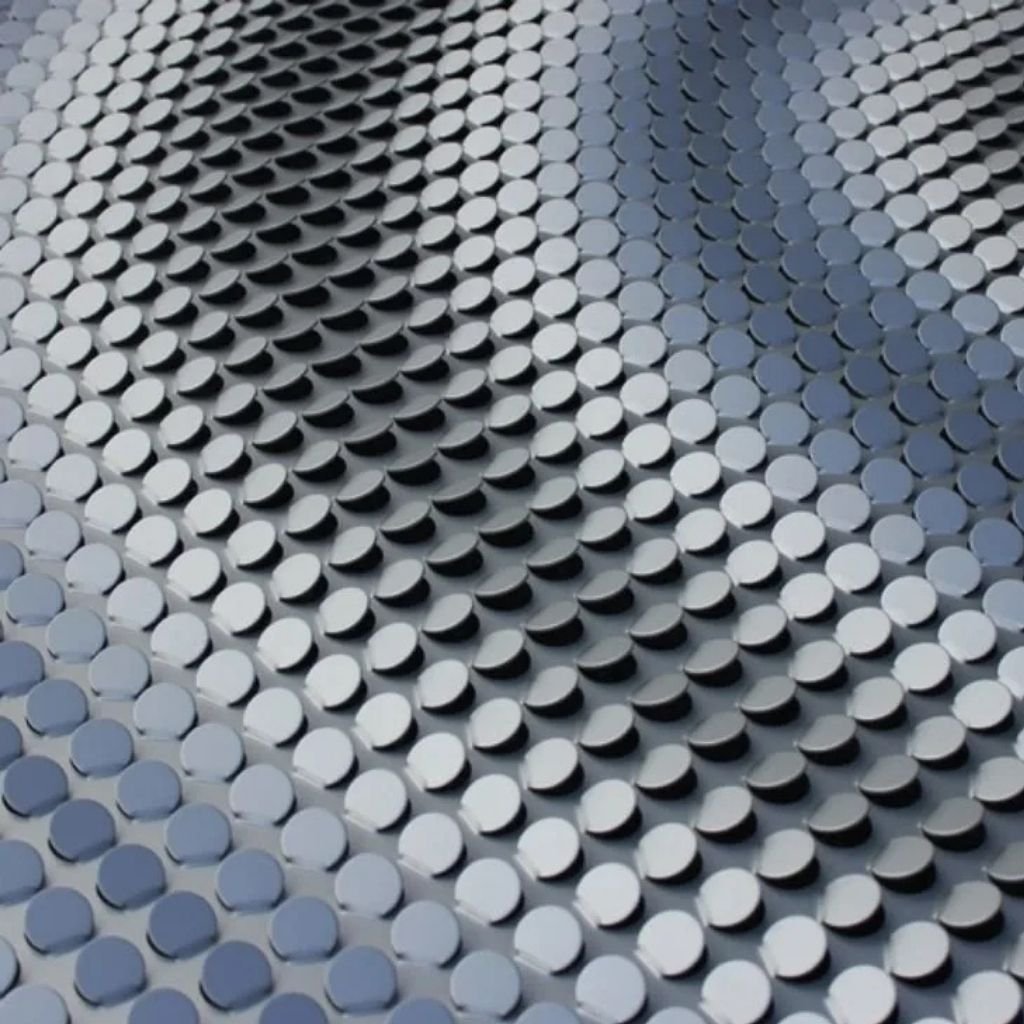

• PIXEL: 200mm × 200mm to 400mm × 400mm

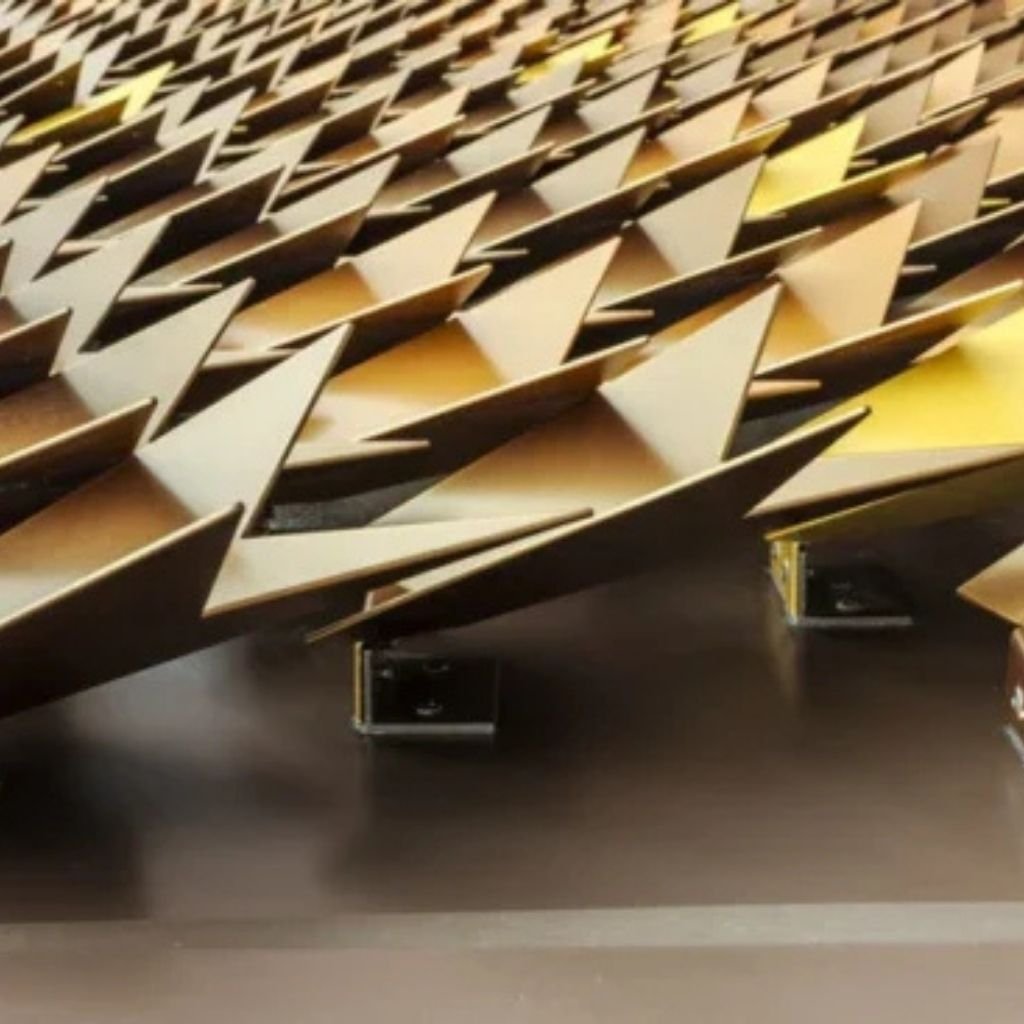

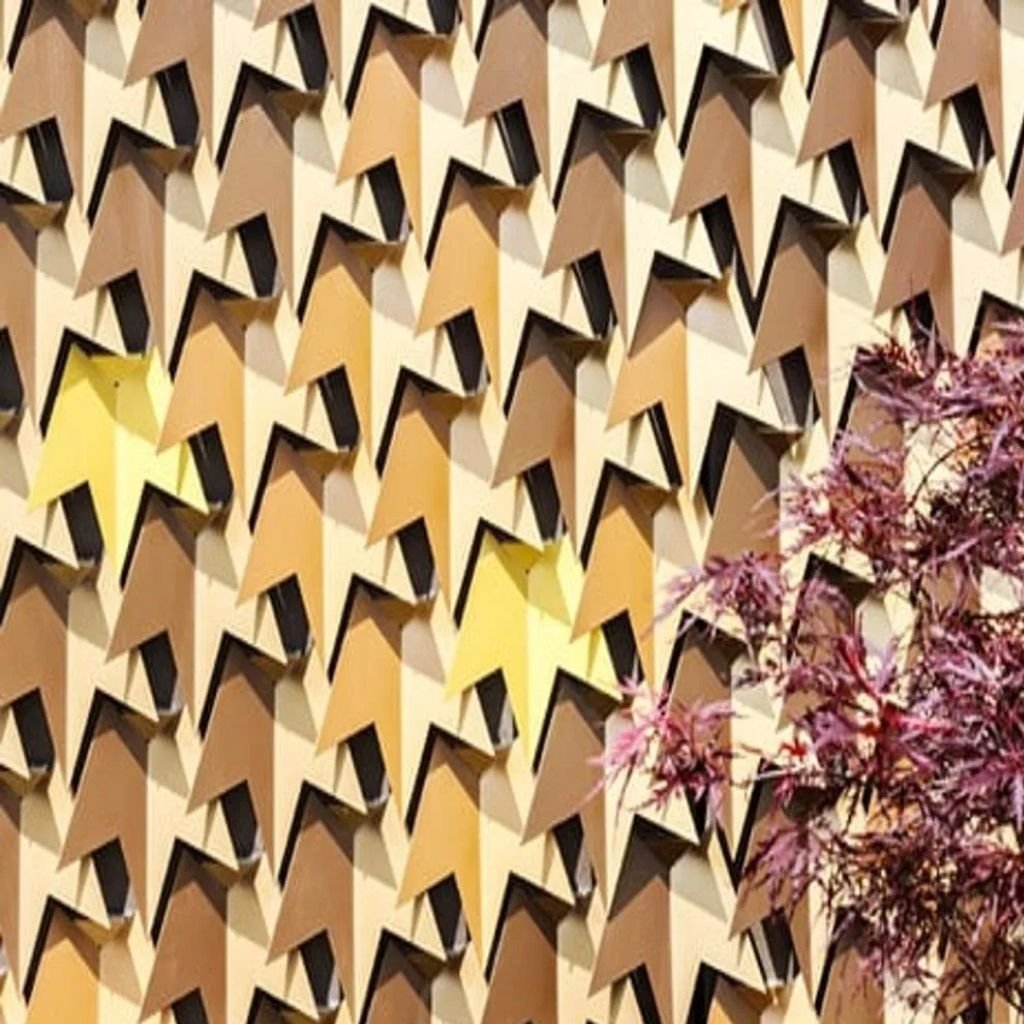

• DELTA: 300mm height, 60° angled fold
• LUMINA: Custom size options available
• Material Options: Aluminum – Powder-Coated

Movement Type

• Passive: Wind-driven (Pivoting / Fluttering axis)
• Active: Servo Motor with Sensor Input (LUX / TEMP / Manual Override)

Mounting System

• Hidden anchor grid / exposed rail system
• Suitable for curtain wall or CMU back walls

Performance Characteristics

• Wind Resistance: Up to 120 km/h
• Fire Rating: Class A
• UV Resistance: ISO 4892-2 Compliant Coatings
• Thermal Expansion Compensation: Built-in floating bracket design

Maintenance:

• Annual inspection recommended
• Panel replacements via snap-lock or bolt system

Packaging & Delivery:

• Flat-pack with protective layering
• Delivery in 4–8 weeks post final design sign-off

Warranty:

• 10 Years Performance Warranty (Materials & Movement)

Key Features:

• 🌐 Wind-Responsive
• ☀️ Sun-Responsive
• 🧰 Easy Maintenance
• ♻️ Recyclable Materials
• 📡 Smart System Ready
• 🔥 Fire Resistant
• ☔ Weatherproof
